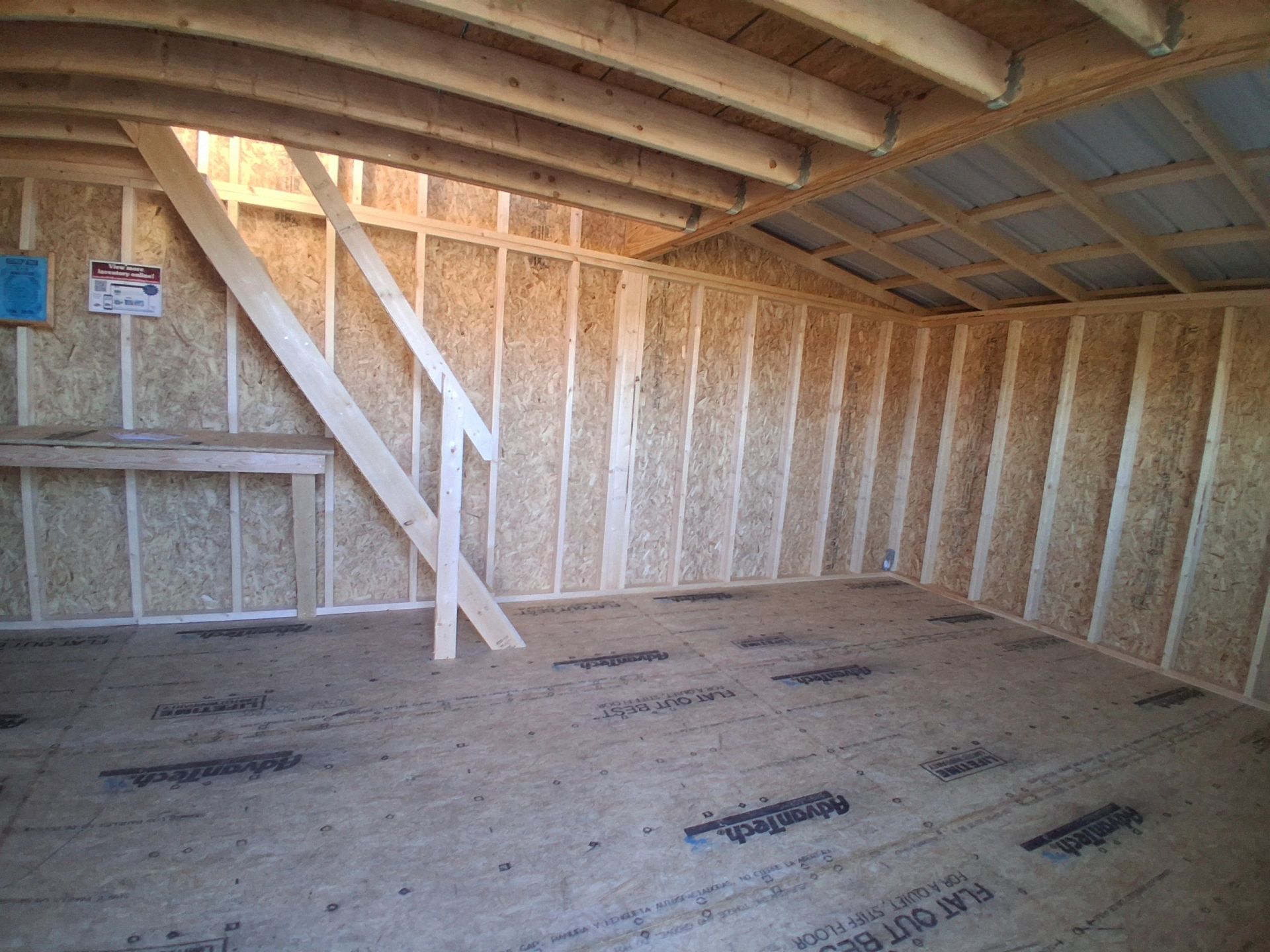

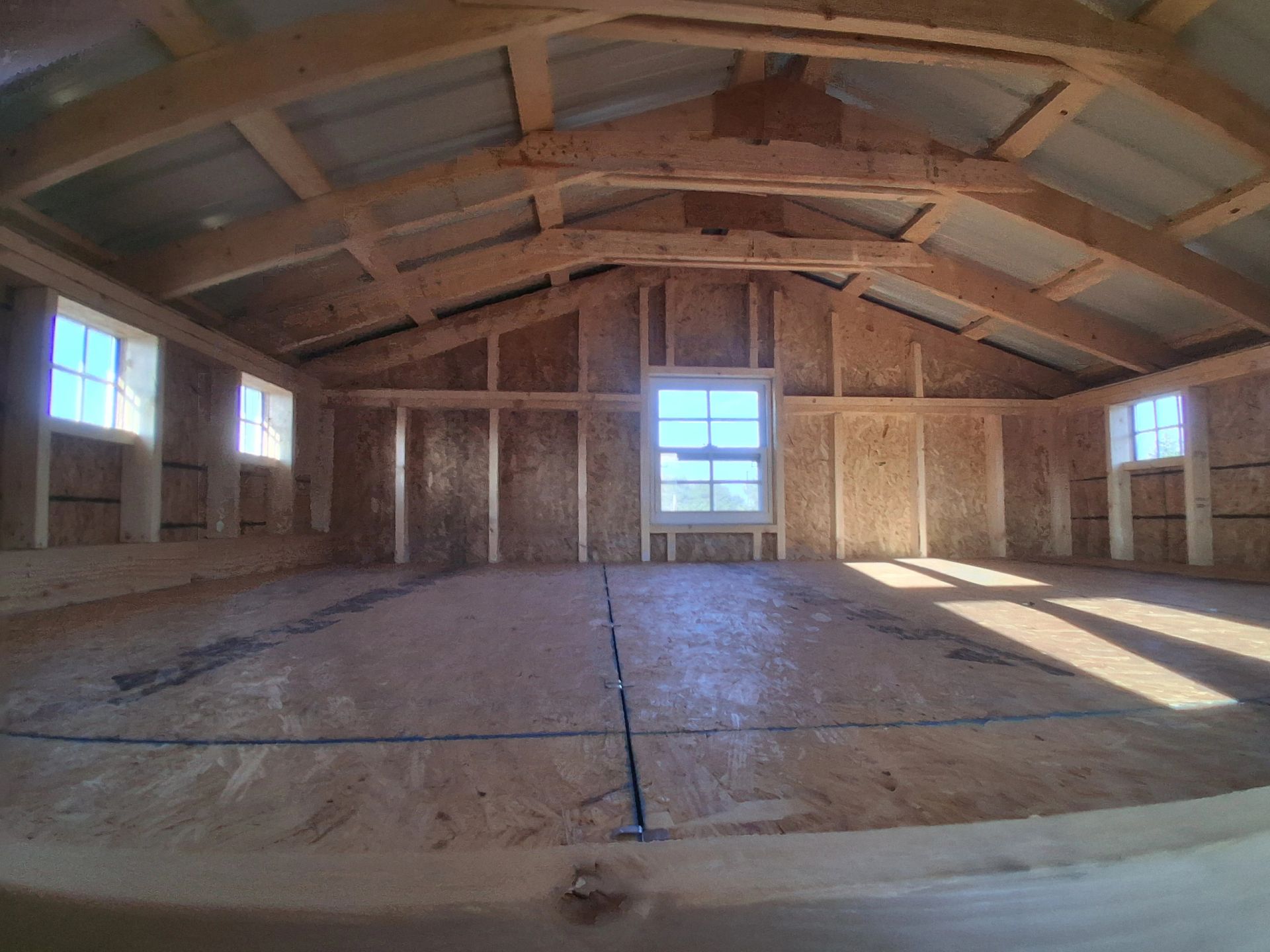

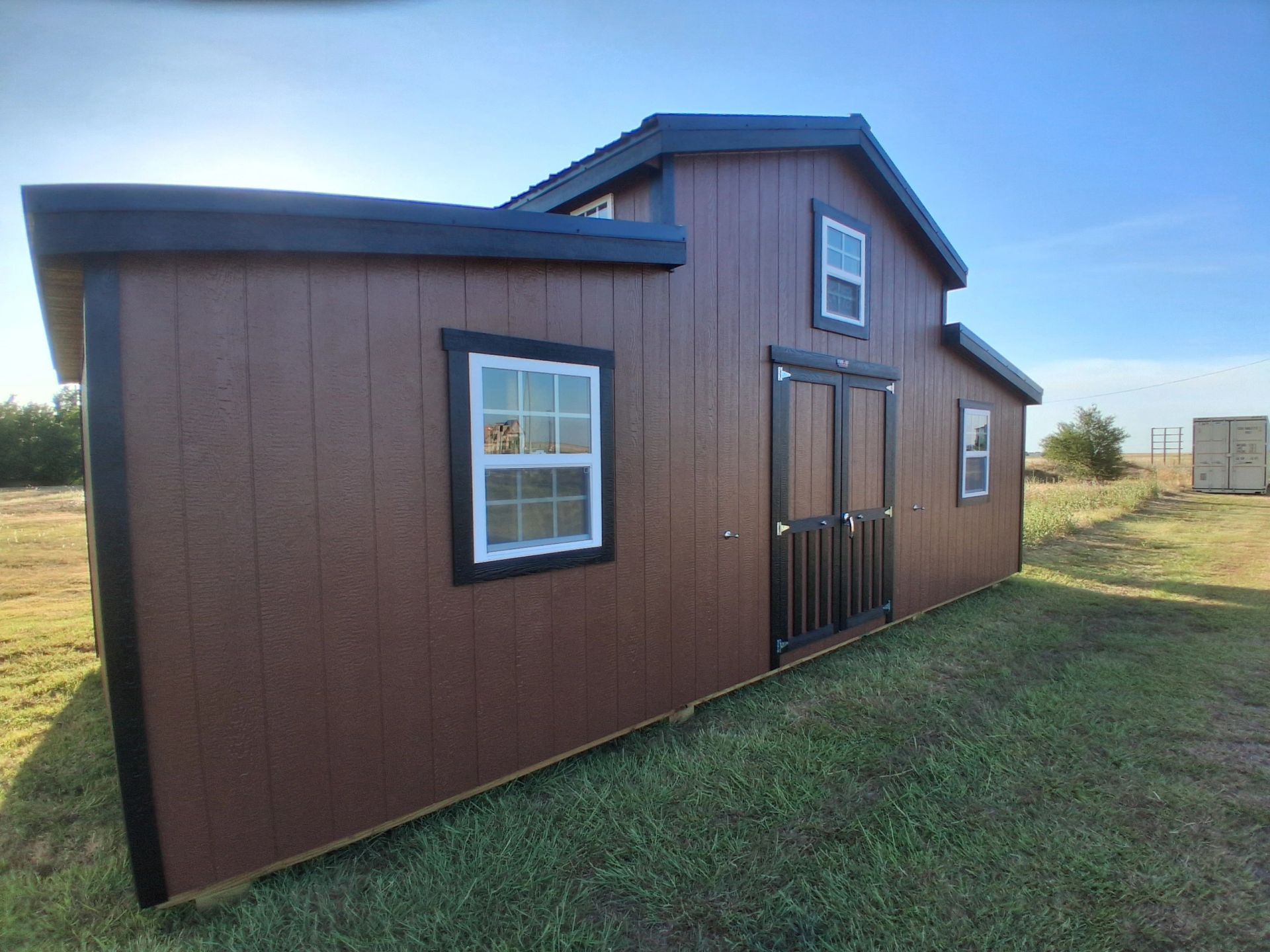

HOMESTEADER shed

---

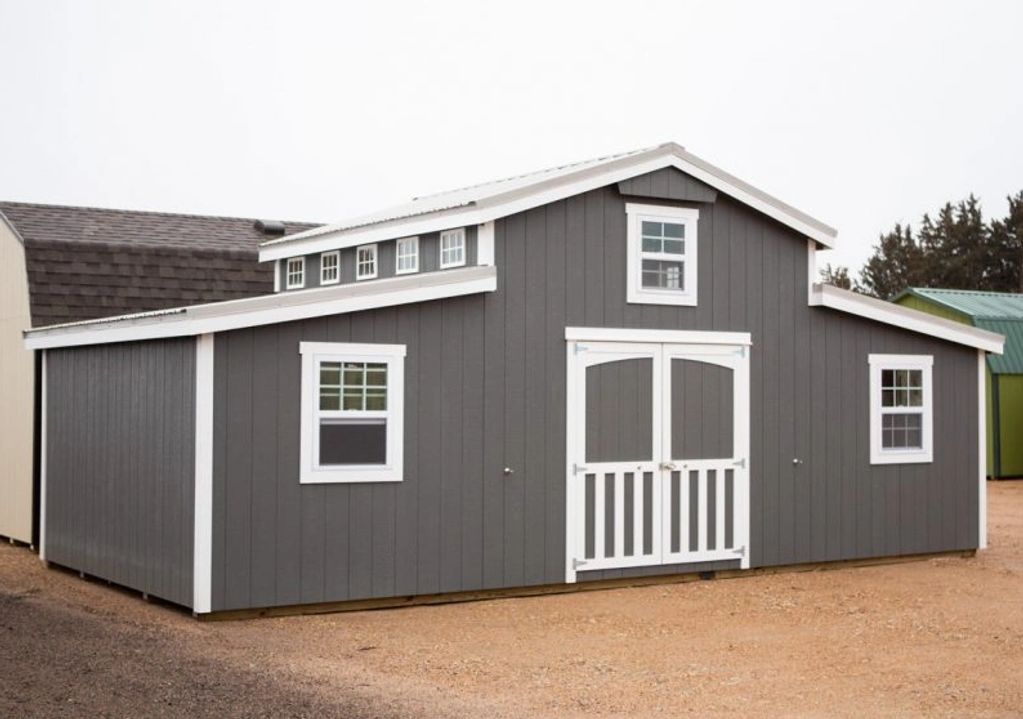

 Sturdi-Bilt Homesteaders feature a gabled or gambrelled center section flanked by a lean-to on each side. The center sections are 12′ wide, and the leans are 6′ or 8′ wide. Available in the following sizes: 12’x24′, 12’x28′, 14’x24′, and 14’x28′, the Homesteader serves as a sales office, cabin, workshop, small animal shelter, multi-purpose storage unit, or whatever you dream!

Standard features of the Homesteader:

• Treated 4×4 foundation timbers
• 2×4 joists, 16″ on center (treated perimeter joists)
• 3/4″ tongue and groove AdvanTech® flooring, lifetime warranty
• Screws in flooring to minimize squeaks
• 2×4 sidewall and endwall studs, 16″ on center
• 7′ sidewalls with 6’8″ inside under storage lofts
• Stairs to storage loft
• LP SmartSide® panel siding, 50 year warranty, (SmartGuard®)

• 2×4 rafters, 24″ on center
• 7/16″ OSB roof sheathing
• 29-gauge steel roofing panels
• 6″ overhangs on all four sides
• Doors fitted with heavy 4″ tee hinges, barrel bolts, and diagonal steel braces
• Doors and corners trimmed with treated LP SmartTrim®, 50 year warranty
• Whitcomb door latch (other options)
• Zinc plating on door hardware
• Sherwin Williams, A-100® satin exterior acrylic latex paint, 15 year warranty

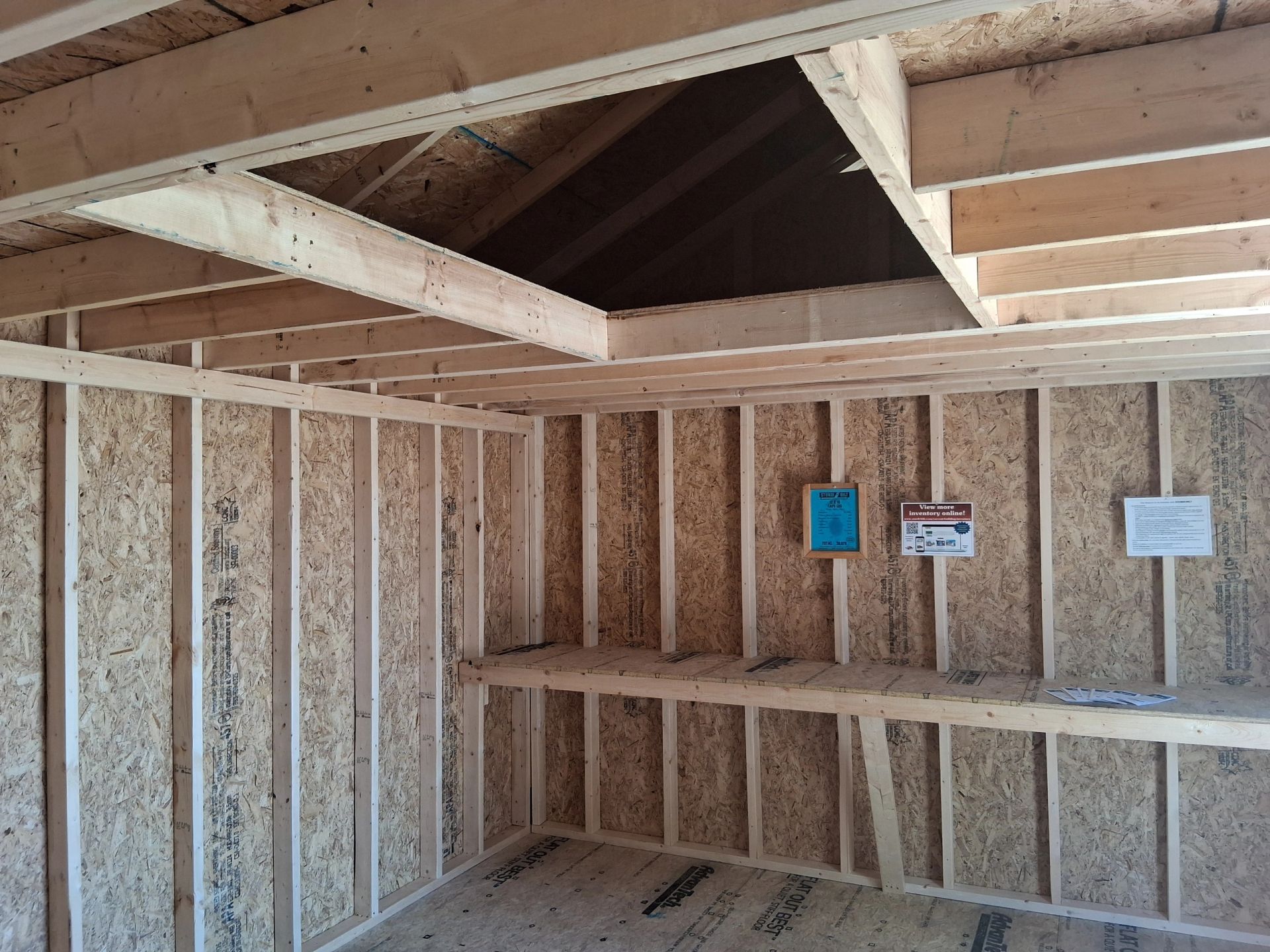

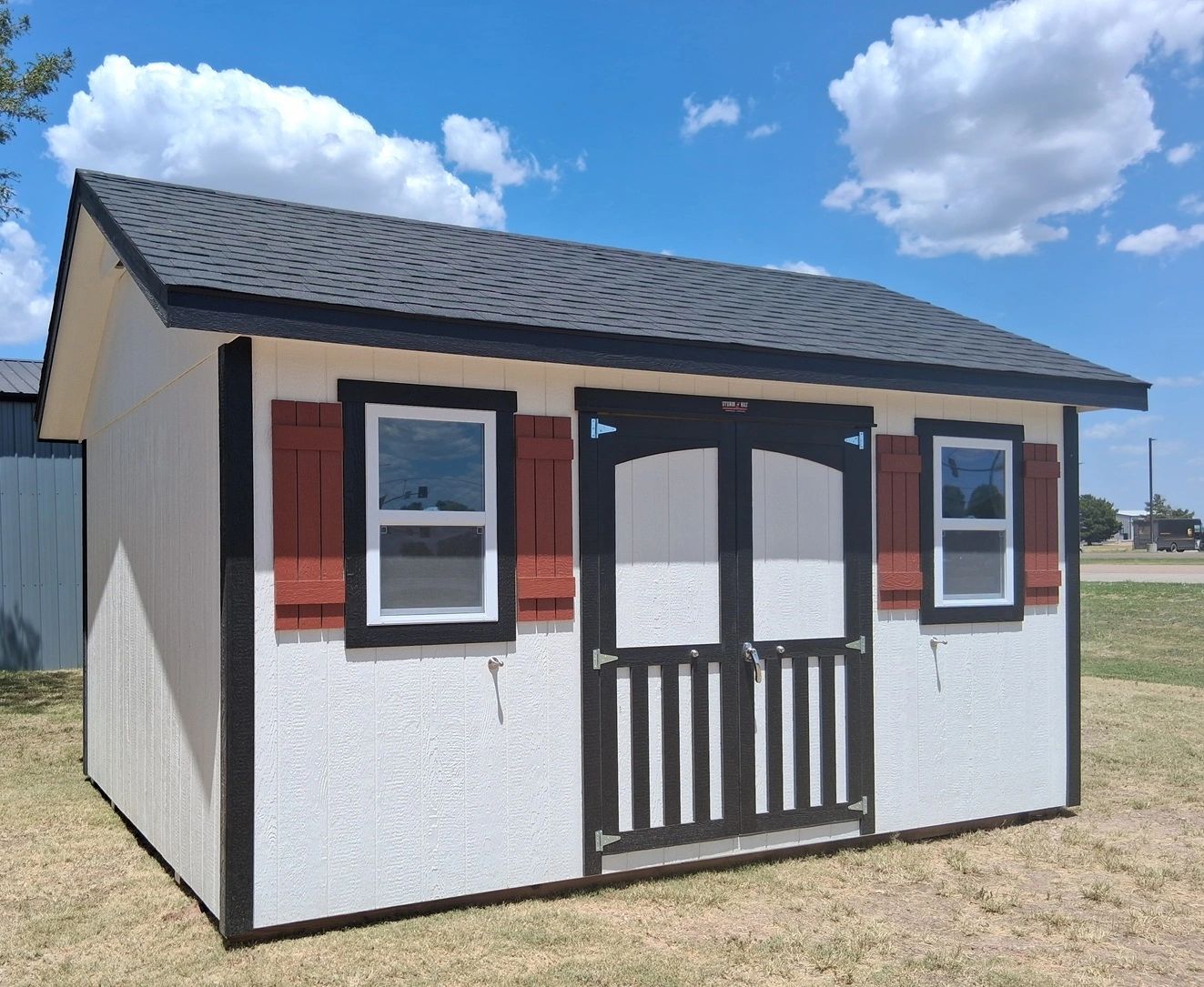

For a storage shed with style, consider the Elite Cape Cod. Built with 8′ sidewalls, a 6/12 pitch roof, 12″ overhangs with soffits, and laminated shingles, this storage unit complements the finest residences.  Available in 10′, 12′, and 14′ widths, the double doors can be installed in both side and end walls.

Standard features of an Elite Cape Cod:

• Treated 4×4 foundation timbers
• 2×4 joists, 16″ o/c (treated perimeter joists)
• 3/4″ tongue and groove AdvanTech® flooring, lifetime warranty
• Screws in flooring to minimize squeaks
• 2×4 wall studs, 16″ on center
• Storage loft at 6’8″ above floor (optional movable ladder)
• LP SmartSide® panel siding, 50 yr warranty, (SmartGuard®)
• 2×4 rafters, 24″ o/c, 6/12 pitch

• 7/16″ OSB roof sheathing
• Lifetime FG laminate shingles (or steel roof)
• 12″ overhangs on four sides
• Doors fitted w/ heavy 4″ tee hinges, loop-style barrel bolts, and diag steel braces
• Doors & corners trimmed with treated LP SmartTrim®
• Whitcomb door latch (other options)
• Zinc plated door hardware
• Top trim for doors
• Sherwin Williams, A-100® satin exterior acrylic latex siding & trim paint, 15 year warranty

Practical and functional, the Elite Gable is our best-selling storage shed.  Due to its standard home-style construction and six-inch roof overhangs with soffits, it complements most residences.  Single and double doors can be placed at either end or on the sidewalls.

Excellent shed building services by experienced craftsmen.

Standard features of an Elite Gable storage shed:

• Treated 4×4 foundation timbers
• 2×4 joists, 16″ on center (treated perimeter joists)
• 3/4″ t/g AdvanTech® flooring
• Screws in flooring
• 2×4 wall studs, 16″ o/c
• 7′ sidewalls with 6’8″ inside; 8′ on 14′ wide
• LP SmartSide® panel siding, 50 year warranty, (SmartGuard®)
• 2×4 rafters, 24″ on center, 4/12 pitch; 2×6 rafters on 14′ width
• 7/16″ OSB roof sheathing

• Lifetime FG laminate shingles (or steel roof)
• 6″ overhangs on four sides
• Doors fitted with heavy 4″ tee hinges, barrel bolts, & diag steel braces
• Doors and corners trimmed w/ treated LP SmartTrim®
• Whitcomb door latch (other options)
• Zinc plating on door hardware
• Top trim for doors
• Sherwin Williams, A-100® satin exterior acrylic latex siding & trim paint, 15 year warranty

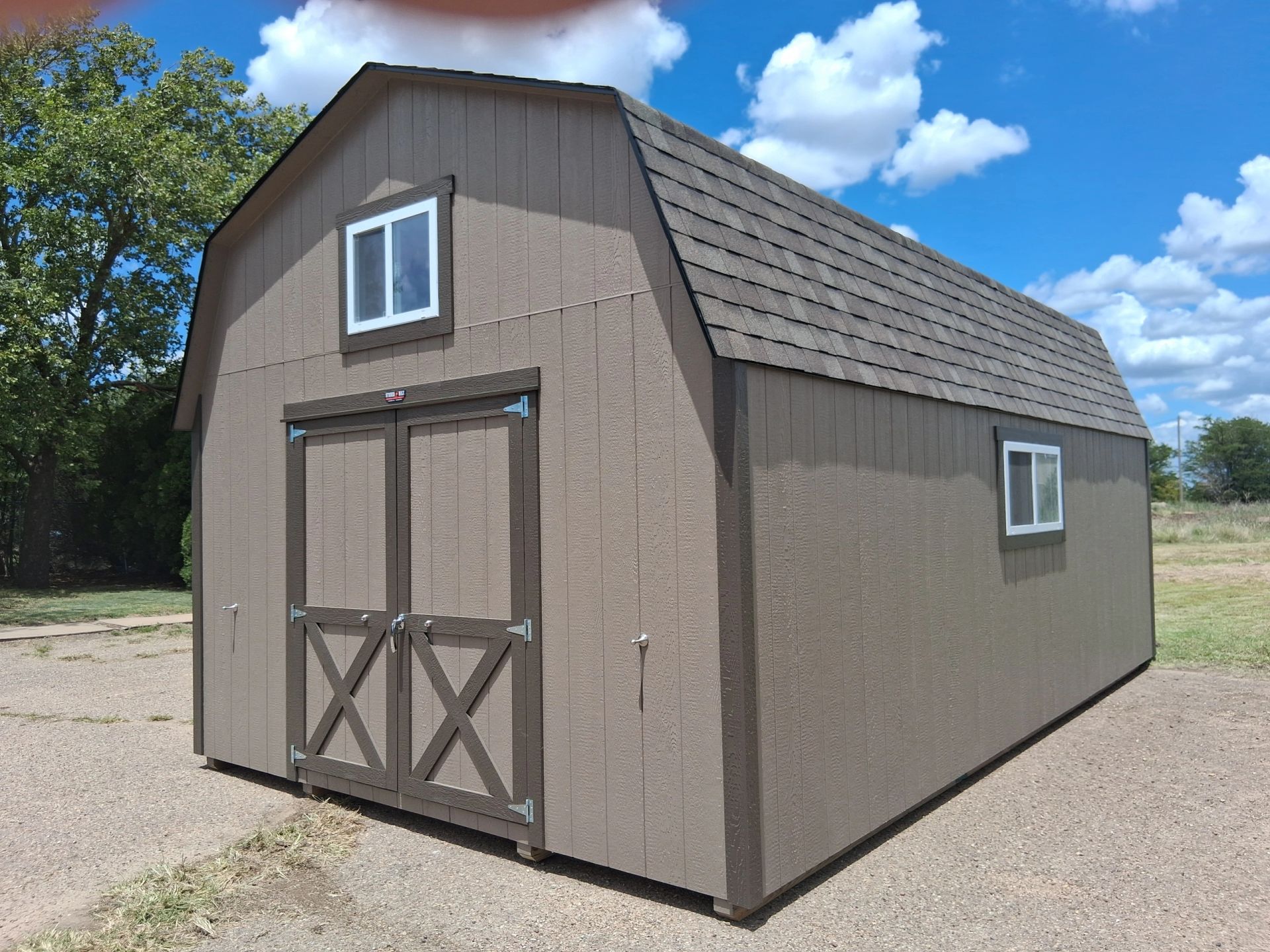

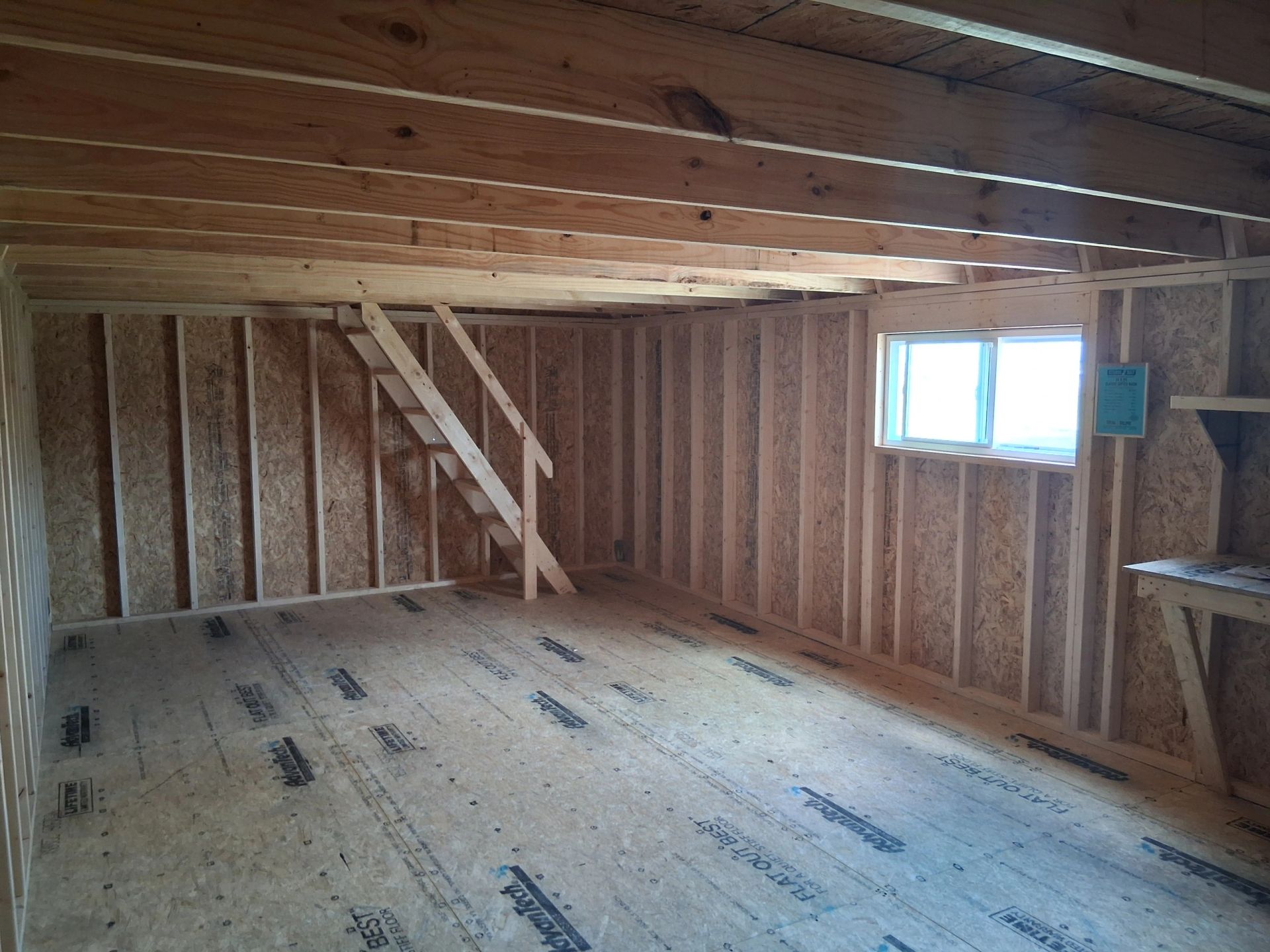

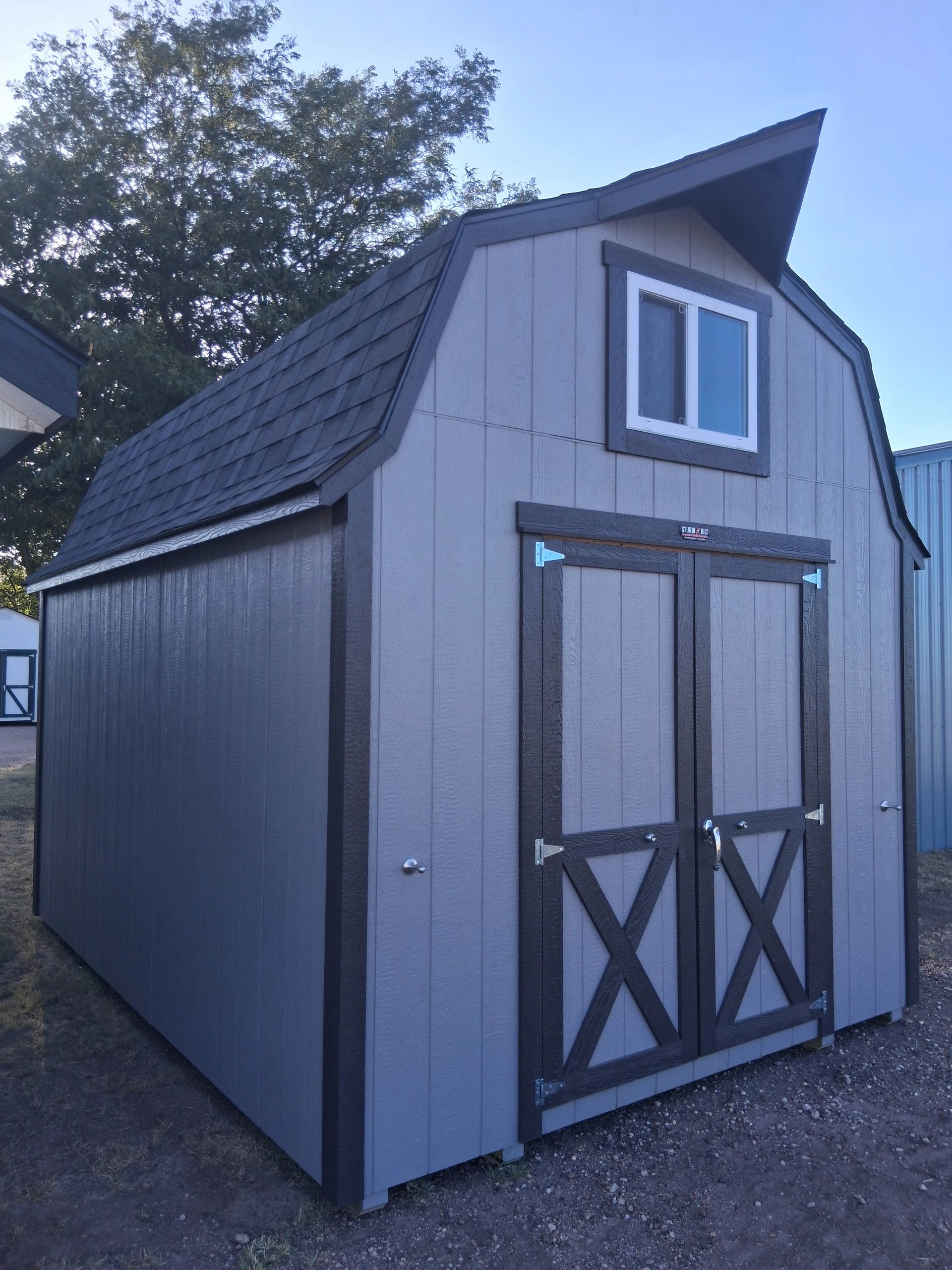

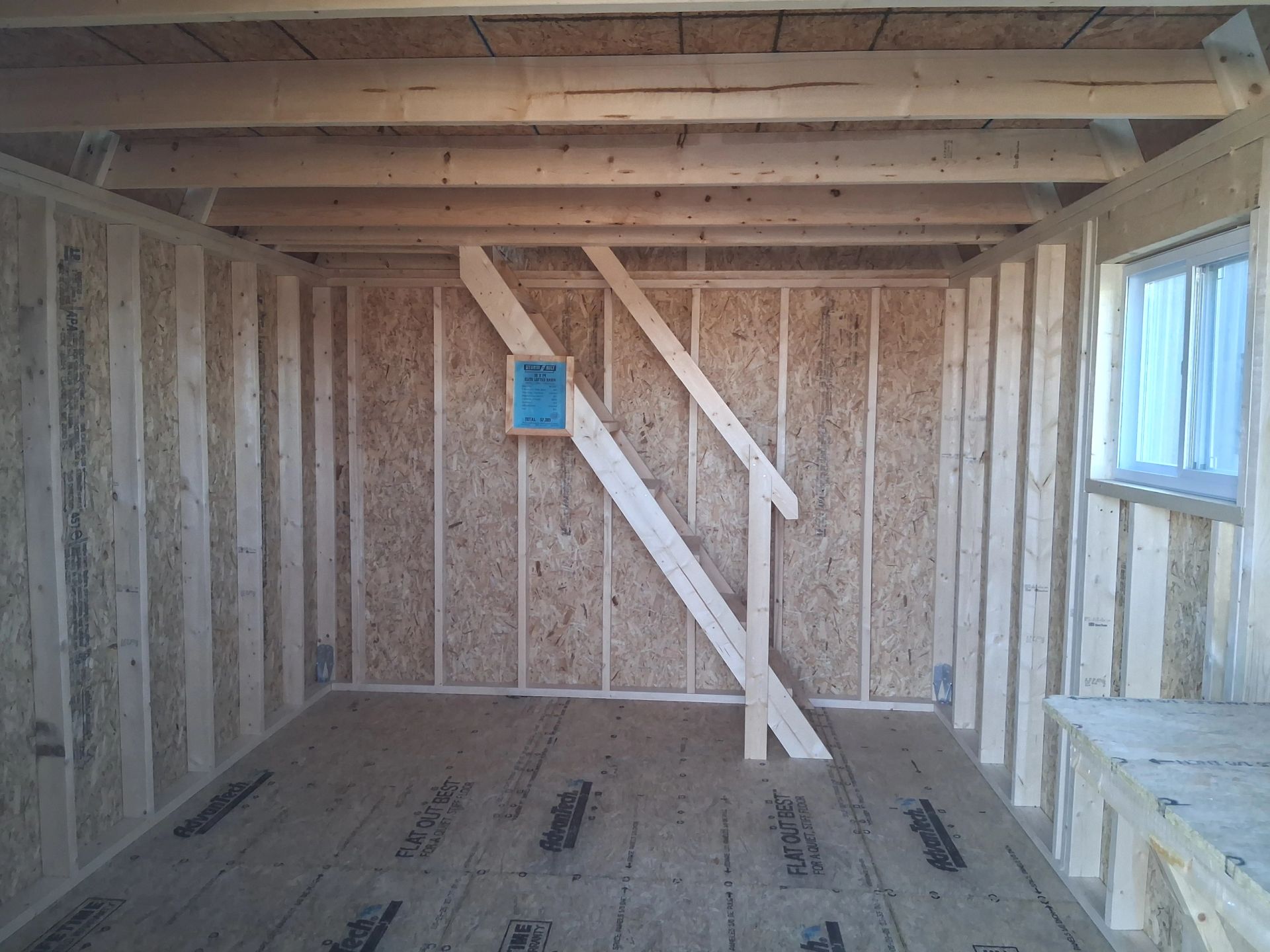

The Elite Lofted Barn includes a full loft and stairs. Designed with 7′ and 8′ sidewalls and full 10′, 12′, and 14′ widths, this unit provides up to 24% more volume than other gambrel buildings on the market today.  Double doors w/ a 60″ overall width are standard on all sizes. All of these buildings can be ordered built on-site, but only the 10′ and 12′ wide buildings are portable.

 Standard features of an Elite Lofted Barn:

• Treated 4×4 foundation timbers
• 2×4 joists, 16″ on center
• 3/4″ t/g AdvanTech® flooring
• Screws in flooring
• 2×4 studs, 16″ on center
• 7′ sidewalls w/ 6’8″ inside under storage lofts on 10′ and 12′ widths; 8′ sides on 14′ units
• Stairs to storage loft
• LP SmartSide® panel (SmartGuard®)
• 2×4 rafters, 24″ on center
• 7/16″ OSB roof sheathing

• Lifetime FG laminate shingles, choice of twelve colors (or steel roof)
• 4″ overhangs on sides
• Doors fitted with heavy 4″ tee hinges, barrel bolts, and diag steel braces
• Doors and corners trimmed w/ treated LP SmartTrim®
• Whitcomb door latch (other options)
• Zinc plating on door hardware
• Top trim for doors
• Sherwin Williams, A-100® satin exterior acrylic latex siding and trim paint, 15 year warranty

Strong and versatile, the Portable Garage can house automobiles, tractors, boats, trailers, four-wheelers, and more. These garages come in 12′ and 14′ widths with a 9’x7′ overhead garage door, a steel-clad walk door, and a beefed-up floor system to stand up to the weight of heavy equipment.

 Standard features of a Portable Garage:

• Treated 4×4 foundation timbers
• 2×4 joists, 8″ o/c
• 3/4″ t/g AdvanTech® flooring, lifetime warranty
• Screws in flooring
• 2×4 wall studs, 16″ on center
• 8′ sidewalls
• LP SmartSide® panel siding, 50 year warranty, (SmartGuard® treatment resists termites and fungal decay)
• 2×4 rafters, 24″ on center, 4/12 pitch; 2×6 rafters on 14′ width
• 7/16″ OSB roof sheathing

• Lifetime FG laminate shingles, choice of twelve colors (convert to steel roof at no charge)
• 6″ overhangs on four sides with fascia trims & enclosed soffits
• Corners trimmed w/ treated LP SmartTrim®, 50-yr warranty
• 9×7 Steel garage door w/ car ramps, optional opener
• 3’x6’8″ Steel-clad walk door, window optional
• Sherwin-Williams, A-100® satin exterior acrylic latex siding and trim paint, 15-year warranty

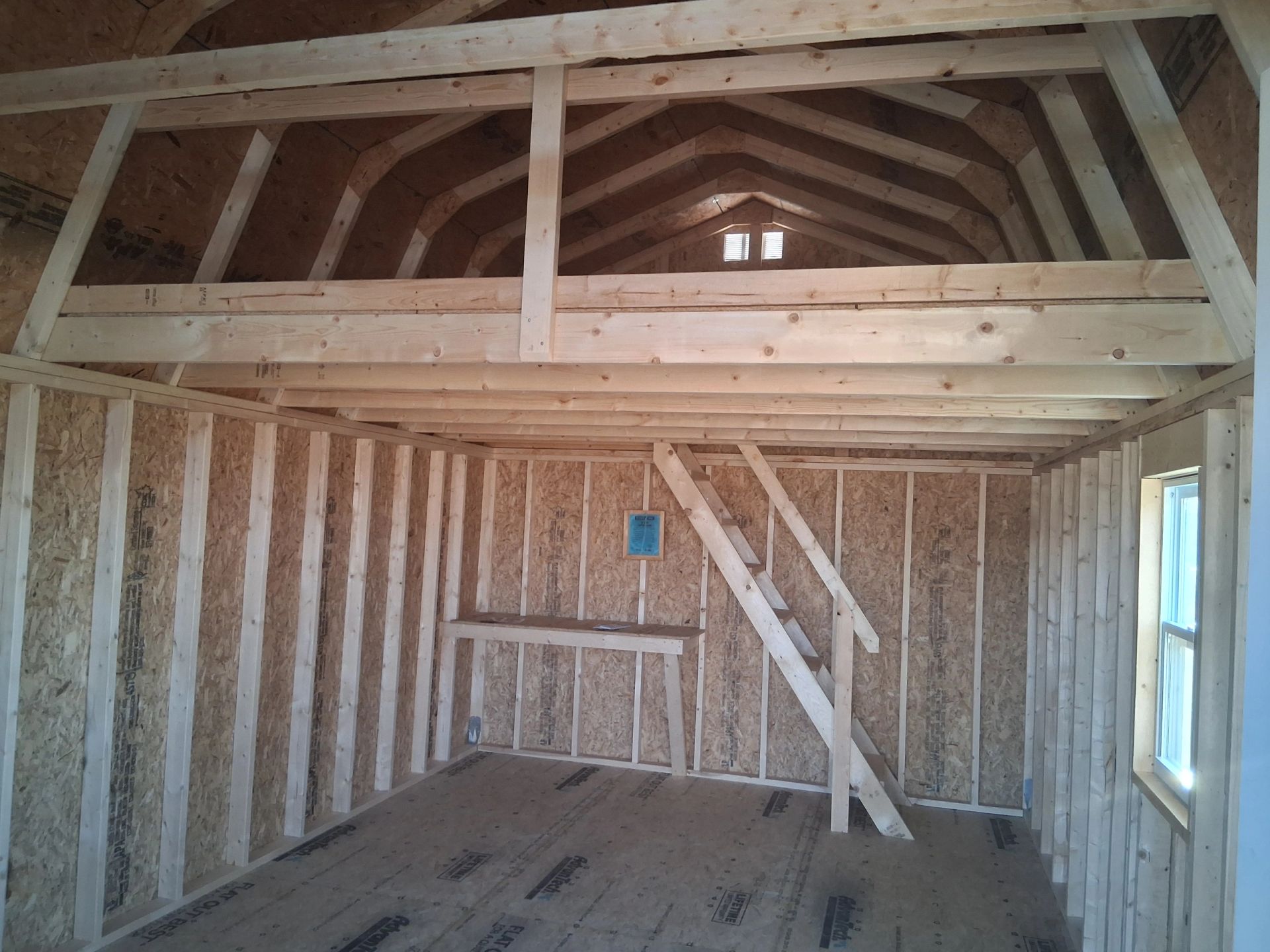

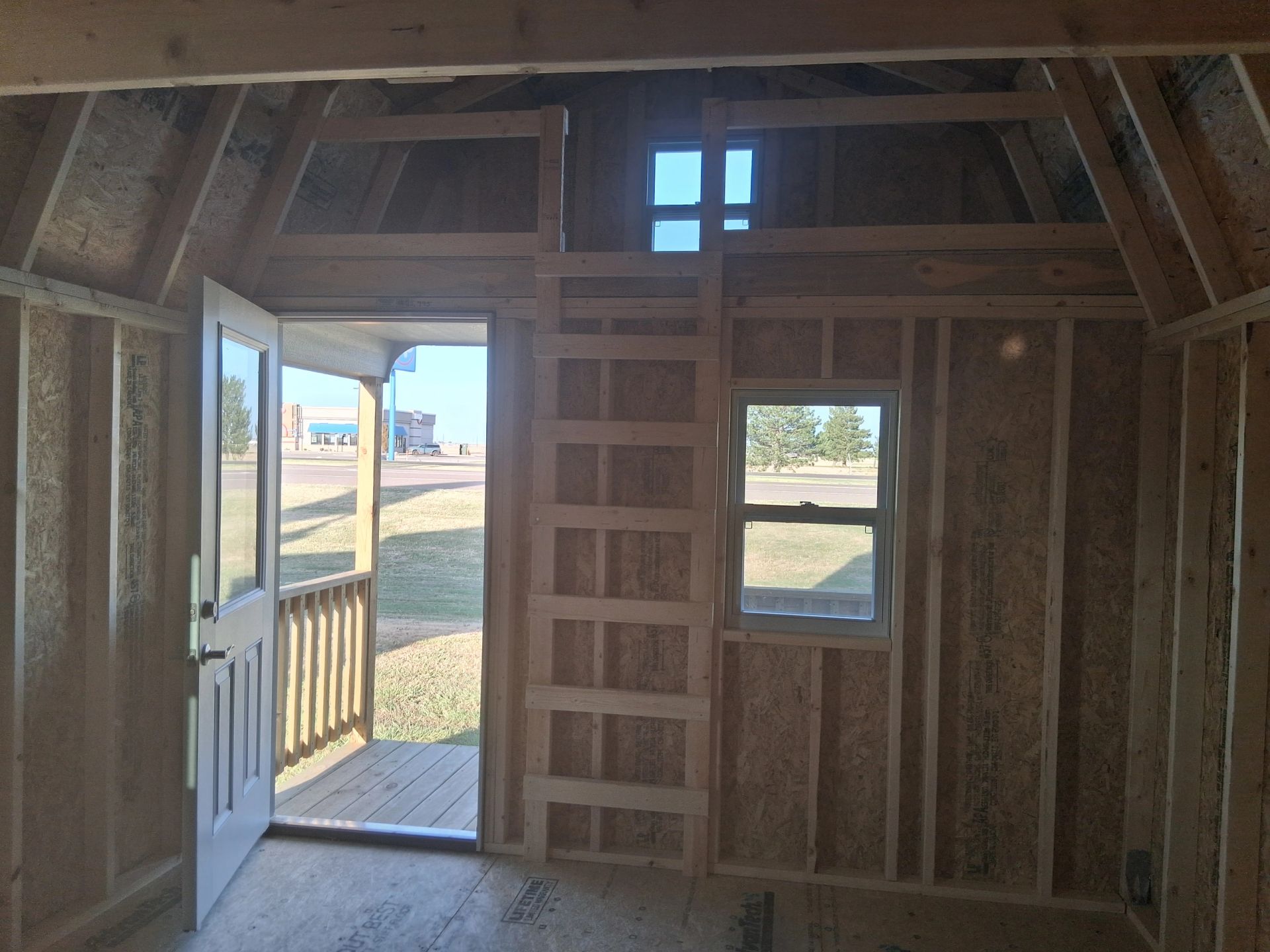

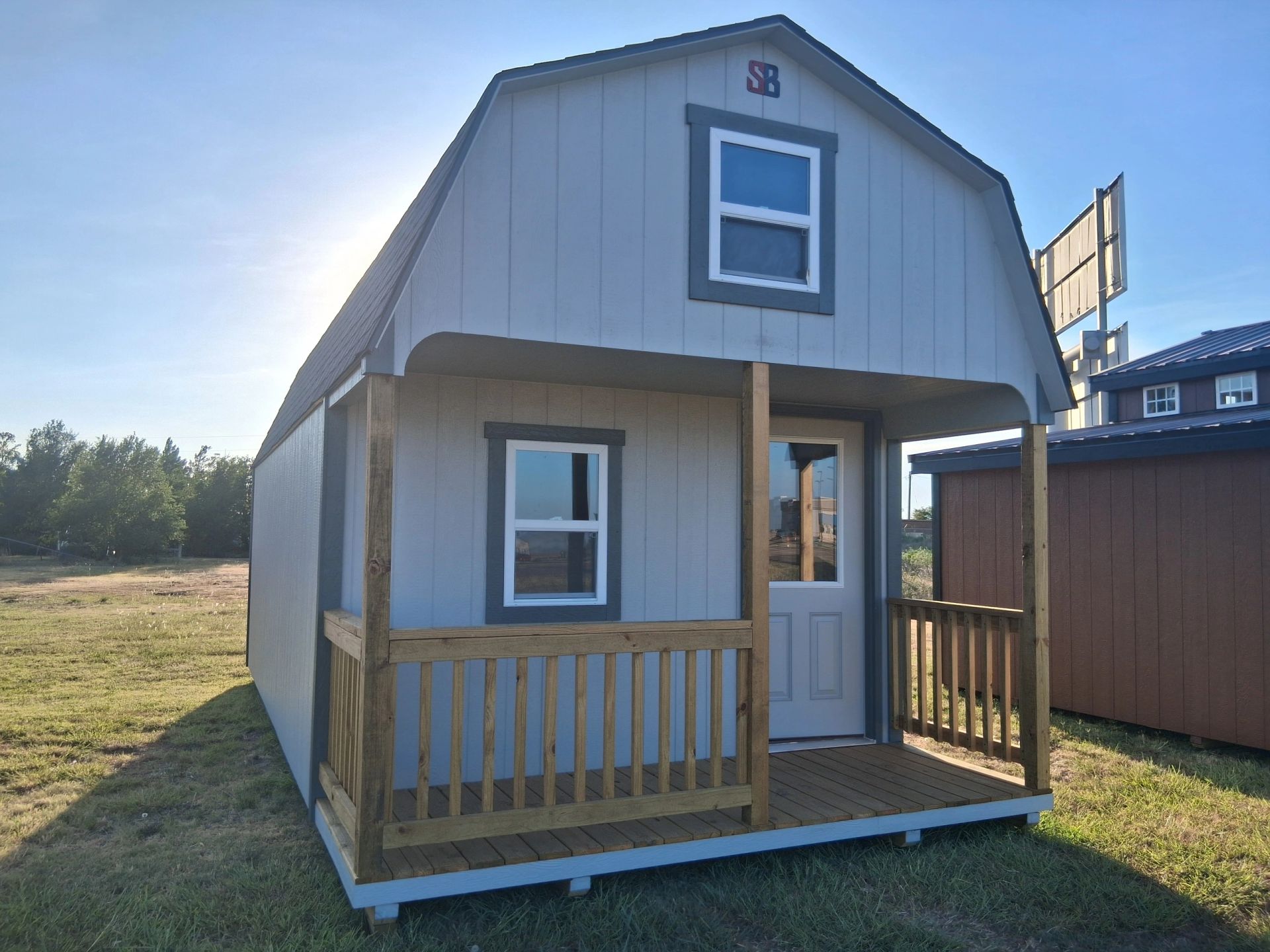

These gambrel-roofed cabins maximize loft headroom.  Available in widths up to 14 feet and heights up to 13 feet tall.  The choice of sidings, porches, windows, and more gives you the freedom to create the place of your dreams.

 Standard Features of Gambrel Cabins:

• 7′ high sidewalls, 2×4 wall studs, 16″ o/c
• Choice of sidings:
  1. LP SmartSide® panel siding, 50-year warranty, (SmartGuard® treatment resists termites and fungal decay)
  2. LP SmartSide® lap siding over 7/16″ OSB boxing & housewrap, 50-yr warranty (SmartGuard®)
  3. Vertical steel panels, 29 gauge, G90 galvanized, 30-year chalk/fade warranty

• Gambrel rafters, 24″ OC, 7/16″ OSB roof sheathing
• Choice of roofing:
  • 7/16 OSB roof sheathing, tar paper, #1 FG lifetime laminate shingles, choice of twelve colors
  • 2×4 purlins, 29 gauge steel, G90 galvanized, 30 year warranty
• Optional 6″ end overhangs with fascia trims and enclosed soffits
• Full loft with stairs
• Insulated windows and doors
• Optional porches and colors

Typically 12’ to 14’ wide and up to 13’ tall at the ridge, these cabins provide economy and portability. Available in a variety of siding options, colors, and window and door locations.

Standard Features of Portable Gable Cabins:

• 8′ high sidewalls, 2×4 wall studs, 16″ on center
• Choice of sidings:
  1. LP SmartSide® panel siding, 50-year warranty, (SmartGuard® treatment resists termites and fungal decay)
  2. LP SmartSide® lap siding over 7/16″ OSB boxing and housewrap, 50-year warranty (SmartGuard®)
  3. Vertical steel panels, 29 gauge, G90 galvanized, 30-year warranty

• 4/12 pitched rafters, 24″ OC
• Choice of roofing:
  • 7/16″ OSB roof sheathing, tar paper, #1 FG lifetime laminate shingles, choice of twelve colors
  • 2×4 purlins, 29 gauge steel, G90 galvanized, 30-year warranty
• 6” overhangs on four sides with fascia trims and enclosed soffits
• Insulated windows and doors
• Optional porches

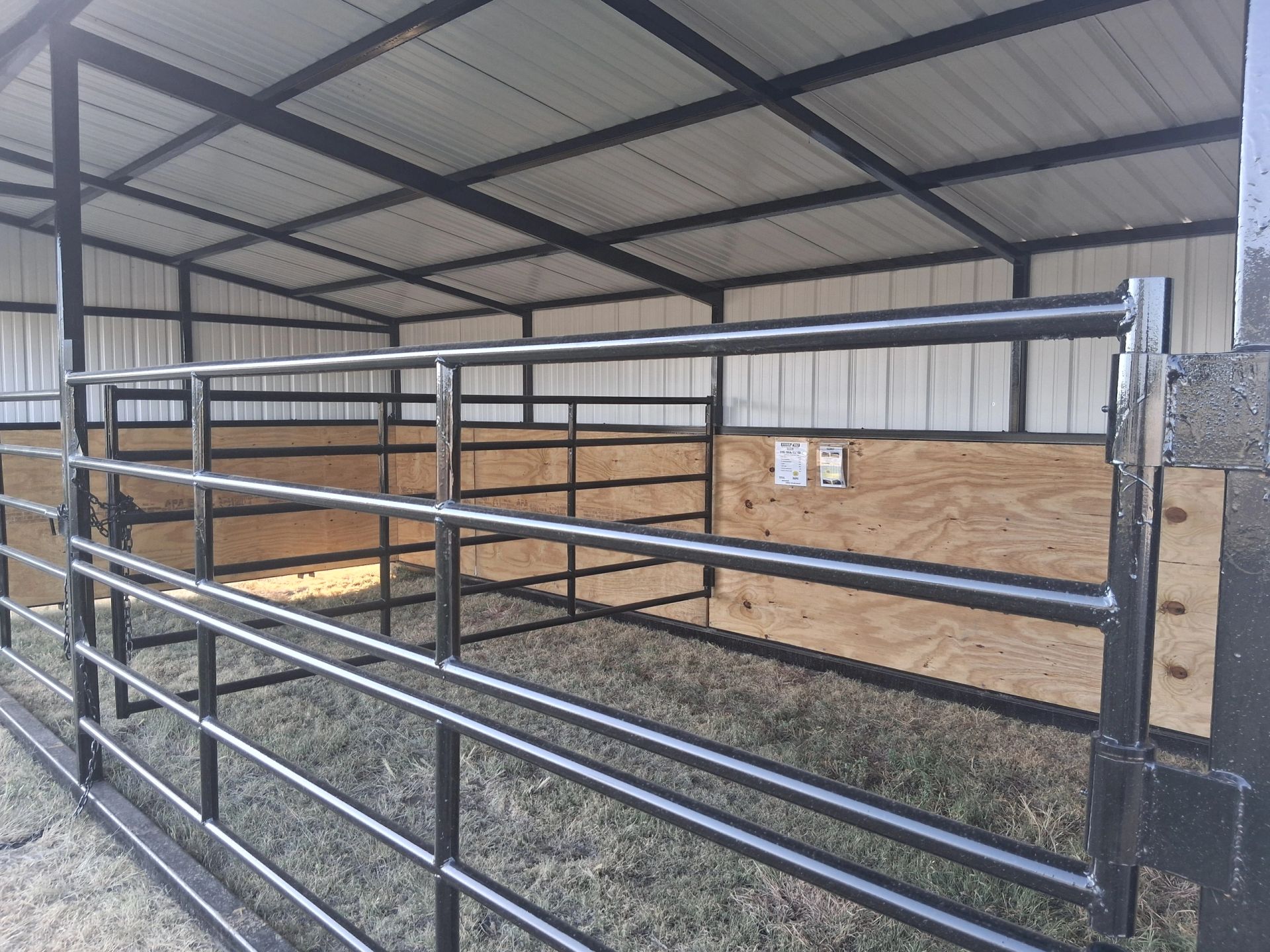

Whether you need a basic run-in loafing shed, a safe horse shelter, a dry place to help your cows calve, or a place to store your tack, these tough, HEAVY-DUTY, all-steel buildings should last you a lifetime.  STURDI-BILT Steel-Framed Shelters provide permanent housing for horses, cows, goats, sheep, or other livestock.  Built with stout square tubular frames, they cannot be chewed & will not rot.

A 12’x18’ run-in shed is usually adequate for three average-sized horses (about 15 hands) that will share their space without fighting. However, as any horse owner knows, horses have a definite “pecking order,” with some members of the herd being more dominant than others.

A few suggestions:

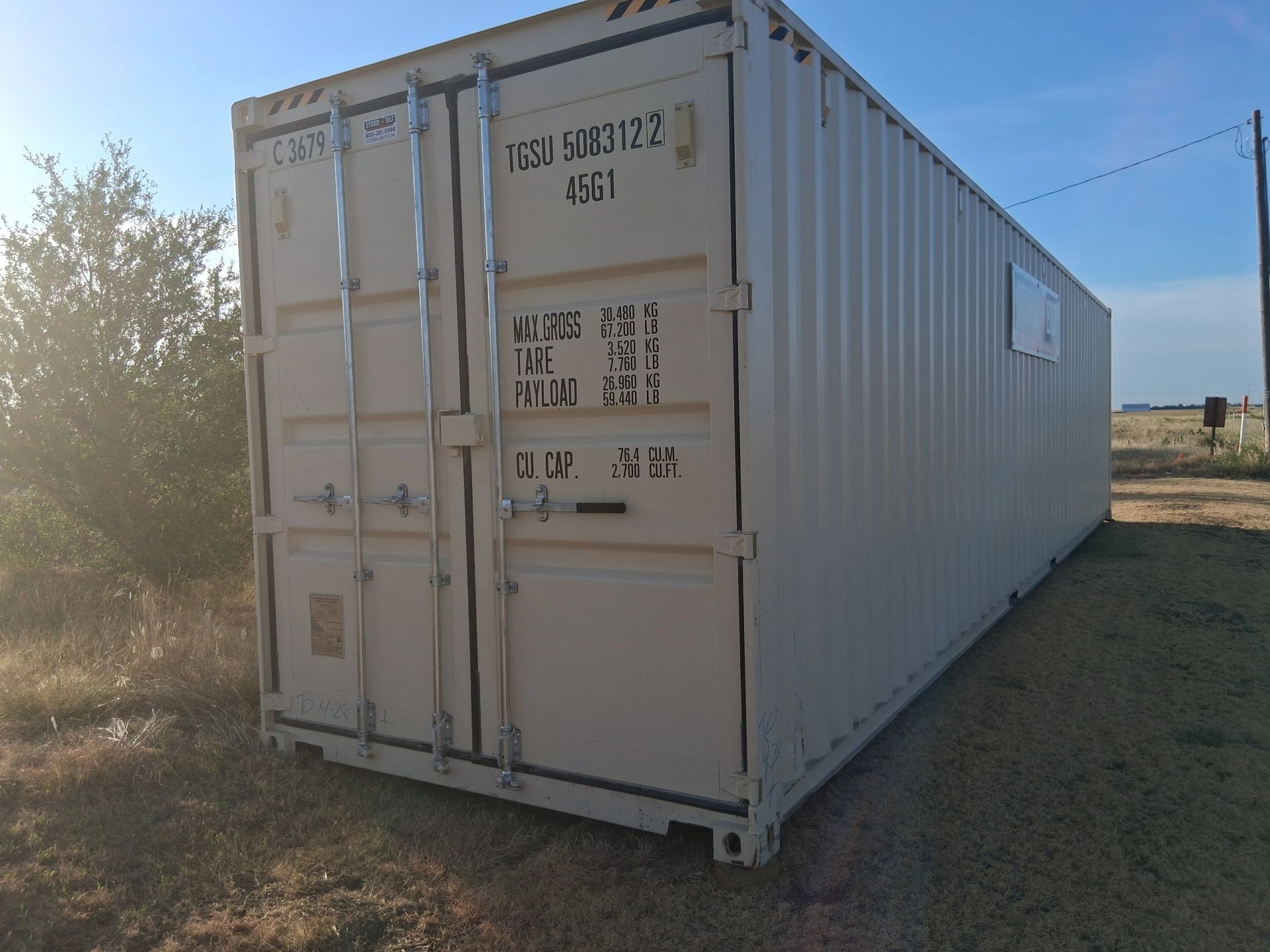

Sturdi-Bilt offers various grades of storage containers for rent or sale, tailored to your budget and specific needs.  We offer a choice of 20′ and 40′ lengths, with doors available in one or both ends, in standard height and high cube configurations. Need walk-in doors and windows?  No sweat!  Our staff will customize it to suit your needs.

Due to our specialized delivery equipment, the space required for delivery of your storage container is very minimal.  The width requirement is approximately 10′.  The length requirement is 6′ on each end of the storage unit.  For example, a 20′ storage container will require only 32′ of length, due to the maneuverability of our Mule.

“Rent-to-Own” as an alternative to mini-storage.

For those needing storage and on a tight budget.

With a storage container from Sturdi-Bilt, you can have your own storage facility placed conveniently in your backyard and own it after 12, 24, or 36 monthly rental payments.  Why rent a storage unit miles away when you could have your storage right in your own yard?
